Akai DP-L1000

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Akai
Release Date October 1987 [1]
Country Japan
Color Encoding System NTSC
Features
Playable Disc Formats LD, CD, CDV
Playable LaserDisc Modes CAV, CLV
Both-Side Play None
CX Noise Reduction Yes
Video Characteristics
Horizontal Resolution (TVL) 420 lines
Video Signal-to-Noise Ratio 46dB
Laser Type
Laser Wavelength
Digital Video Processor None
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response 4-20,000Hz
Signal-to-Noise Ratio 107dB
Power Characteristics
Input Voltage 100V
Power Frequency 50, 60Hz
Power Consumption 42W
Physical Characteristics
Dimensions (W x H x D) 420 x 113 x 440mm
Weight 10.6kg
Loading Belt Part No.
Accessories
Remote Control Akai DP-L1000 Remote
Photos
Akai DP-L1000 Front Panel (Use Edit tab to upload a new file)

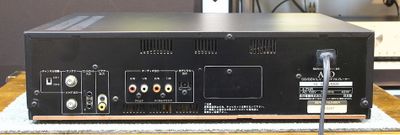

Akai DP-L1000 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
1 RCA
S-Video
0
VHF
1 F-Type
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
2 RCA (1 DAC)
AC-3 RF
0
Coaxial Digital
0
Optical Digital
1 TOSLINK
Remote Control
Remote Input
0
Remote Output
0


Manuals

Operating Instructions

Service Manual

Technical Data References

Other Information

Branded as "A&D" (Akai & Diatone) in Japan thanks to a partnership with Mitshubishi Electric.
