Amfiton VP 201

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Amfiton
Release Date 1989
Country Russia
Color Encoding System PAL
Features
Playable Disc Formats LD
Playable LaserDisc Modes CAV, CLV
Both-Side Play None
CX Noise Reduction No
Video Characteristics
Horizontal Resolution (TVL)
Video Signal-to-Noise Ratio 41dB
Laser Type Helium-Neon Tube
Laser Wavelength
Digital Video Processor None
Analog Audio Characteristics
Frequency Response 40-20,000Hz
Signal-to-Noise Ratio 61dB
Digital Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Power Characteristics
Input Voltage 220V
Power Frequency
Power Consumption 60W
Physical Characteristics
Dimensions (W x H x D) 520 x 113 x 362mm
Weight 10kg
Loading Belt Part No.
Accessories
Remote Control Amfiton DU 201
Photos

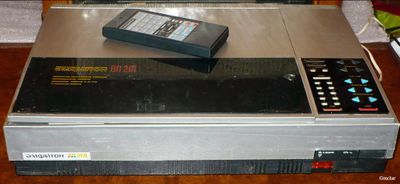

Amfiton VP 201 Front Panel (Use Edit tab to upload a new file)

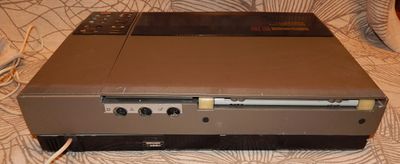

Amfiton VP 201 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
0
S-Video
0
VHF
0
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
0
AC-3 RF
0
Coaxial Digital
0
Optical Digital
0
Remote Control
Remote Input
0
Remote Output
0

Clone Model Numbers/Rebadges

Rus VP 201

Manuals

Operating Instructions

Service Manual

Technical Data References


Other Information

Amfiton [Амфитон] VP 201 [ВП 201]

Amphiton VP-201 is the twin brother of the Russia VP-201 player . Produced at the Yaroslavl plant "Mashpribor" and appeared, apparently, earlier than "Rus." Production began approximately in the 1989th year, ended in the 1991th. In the instructions to all well-known players there is a stamp "EXPERIMENTAL SAMPLE". In general, it differs from Rus by a slightly worse manufacturing quality. There is evidence that Amphiton VP-201 was also produced at the Izhevsk Mechanical Plant.[1]
