Kenwood LVD-280

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Kenwood
Release Date 1995 [1]
Country Japan
Color Encoding System NTSC
Features
Playable Disc Formats LD, CD
Playable LaserDisc Modes
Both-Side Play None
CX Noise Reduction Yes
Video Characteristics
Horizontal Resolution (TVL) 425 lines
Video Signal-to-Noise Ratio 50dB
Laser Type
Laser Wavelength
Digital Video Processor None
Analog Audio Characteristics
Frequency Response 4-20,000Hz
Signal-to-Noise Ratio 115dB
Digital Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Power Characteristics
Input Voltage 100, 110, 115, 120V
Power Frequency 50, 60Hz
Power Consumption 35W
Physical Characteristics
Dimensions (W x H x D) 440 x 128 x 393mm
Weight 7.1kg
Loading Belt Part No.
Accessories
Remote Control
Photos

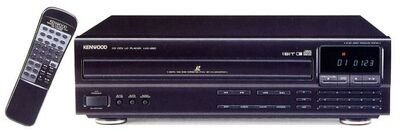

Kenwood LVD-280 Front Panel (Use Edit tab to upload a new file)

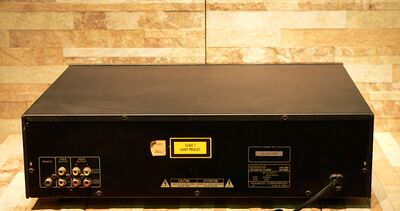

Kenwood LVD-280 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
2 RCA
S-Video
0
VHF
0
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
2 RCA
AC-3 RF
0
Coaxial Digital
0
Optical Digital
0
Remote Control
Remote Input
1 RCA
Remote Output
0


Manuals

Operating Instructions

Service Manual

Technical Data References
