Kenwood LVD-320

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Kenwood
Release Date
Country US
Color Encoding System NTSC
Features
Playable Disc Formats LD, CD
Playable LaserDisc Modes
Both-Side Play None
CX Noise Reduction No
Video Characteristics
Horizontal Resolution (TVL) 425 lines
Video Signal-to-Noise Ratio 50dB
Laser Type
Laser Wavelength
Digital Video Processor None
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response 4-20,000Hz
Signal-to-Noise Ratio 115dB
Power Characteristics
Input Voltage 120V
Power Frequency 60Hz
Power Consumption 30W
Physical Characteristics
Dimensions (W x H x D) 440 x 128 x 396mm
Weight 9.0kg
Loading Belt Part No.
Accessories
Remote Control Kenwood RC-LVD031
Photos

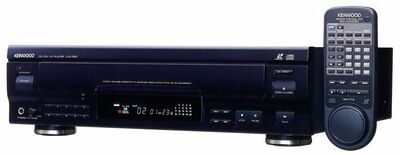

Kenwood LVD-320 Front Panel (Use Edit tab to upload a new file)

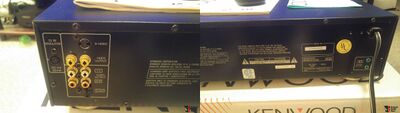

Kenwood LVD-320 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
2 RCA
S-Video
1 S-Video
VHF
0
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
2 RCA
AC-3 RF
0
Coaxial Digital
0
Optical Digital
1 TOSLINK
Remote Control
Remote Input
1 Mini TRS
Remote Output
1 Mini TRS


Manuals

Operating Instructions

Service Manual

Technical Data References
