Marantz LV-1CD

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Marantz
Release Date September 1984
Country
Color Encoding System NTSC
Features
Playable Disc Formats LD, LD 20cm, CD
Playable LaserDisc Modes
Both-Side Play None
CX Noise Reduction No
Video Characteristics
Horizontal Resolution (TVL)
Video Signal-to-Noise Ratio
Laser Type
Laser Wavelength
Digital Video Processor None
Analog Audio Characteristics
Frequency Response 20-20,000Hz
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response 5-20,000Hz
Signal-to-Noise Ratio
Power Characteristics
Input Voltage 100V
Power Frequency 50, 60Hz
Power Consumption 42W
Physical Characteristics
Dimensions (W x H x D) 420 x 168 x 447
Weight 16kg
Loading Belt Part No.
Accessories
Remote Control
Photos

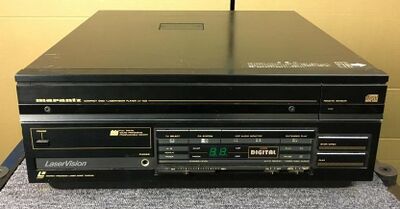

Marantz LV-1CD Front Panel (Use Edit tab to upload a new file)

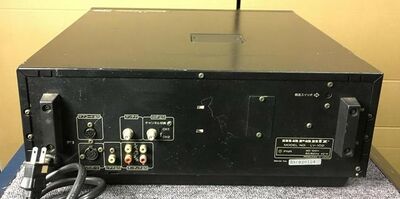

Marantz LV-1CD Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
1 RCA
S-Video
0
VHF
1 F-Type
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
2 RCA
AC-3 RF
0
Coaxial Digital
0
Optical Digital
0
Remote Control
Remote Input
0
Remote Output
0

Clone Model Numbers/Rebadges

Hitachi VIP-30C • Luxman D-408 • Pioneer CLD-9000 • Sony LDP-250CD • Teac LV-5000DS

Manuals

Operating Instructions

Service Manual

Technical Data References


Other Information

Can be used with a Japanese MSX1 computer using the 8-pin U-DIN connector.
