Pioneer CL-J75LD

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Pioneer
Release Date January 1995
Country US
Color Encoding System NTSC
Features
Playable Disc Formats LD, CD
Playable LaserDisc Modes
Both-Side Play None
CX Noise Reduction No
Video Characteristics
Horizontal Resolution (TVL)
Video Signal-to-Noise Ratio
Laser Type Infrared Diode
Laser Wavelength 780
Digital Video Processor Pioneer PD0192A
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response 4-20,000Hz
Signal-to-Noise Ratio 100dB
Power Characteristics
Input Voltage 120V
Power Frequency 60Hz
Power Consumption 330W
Physical Characteristics
Dimensions (W x H x D) 320 x 350 x 403mm
Weight 12.2kg
Loading Belt Part No. Pioneer VEB1184
Accessories
Remote Control Pioneer CU-CL005
Photos

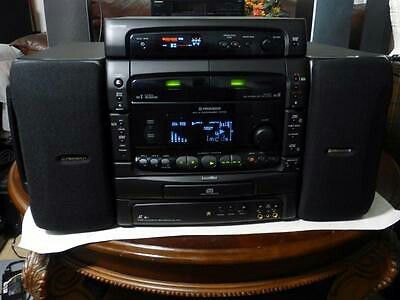

Pioneer CL-J75LD Front Panel (Use Edit tab to upload a new file)

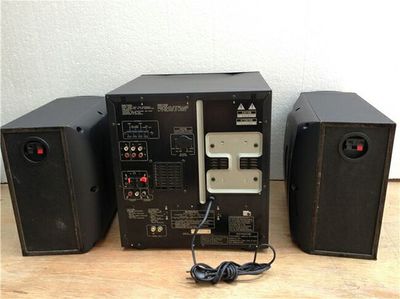

Pioneer CL-J75LD Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
2 RCA
S-Video
0
VHF
0
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
1 RCA
AC-3 RF
0
Coaxial Digital
0
Optical Digital
0
Remote Control
Remote Input
0
Remote Output
0

Clone Model Numbers/Rebadges

Pioneer CL-J35LD • Pioneer CL-J55LD

Manuals

Operating Instructions

Service Manual

Technical Data References


Other Information

This unit was a combination LD/CD/Cassette/Radio mini system with speakers.

Types: CL-J75LD/SD, SL, HE, HE/FR, HEZI/DI, HB. Types SD, SL have a voltage selector.
