Pioneer CLD-02

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Pioneer
Release Date September 1993
Country Japan
Color Encoding System NTSC
Features
Playable Disc Formats LD, CD
Playable LaserDisc Modes
Both-Side Play None
CX Noise Reduction No
Video Characteristics
Horizontal Resolution (TVL)
Video Signal-to-Noise Ratio
Laser Type
Laser Wavelength
Digital Video Processor None
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Power Characteristics
Input Voltage 100V
Power Frequency 50, 60Hz
Power Consumption 34W
Physical Characteristics
Dimensions (W x H x D) 420 x 122 x 390mm
Weight 7.1kg
Loading Belt Part No.
Accessories
Remote Control Pioneer CU-CLD093
Photos

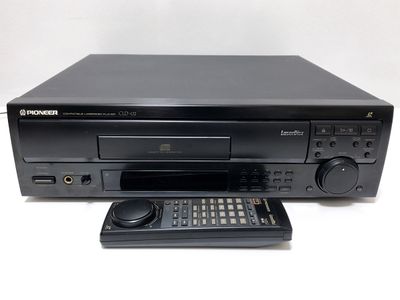

Pioneer CLD-02 Front Panel (Use Edit tab to upload a new file)

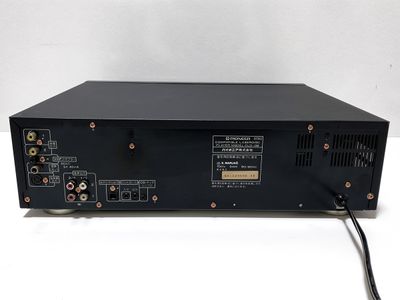

Pioneer CLD-02 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
2 RCA
S-Video
1 S-Video
VHF
0
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
2 RCA
AC-3 RF
1 RCA
Coaxial Digital
0
Optical Digital
1 TOSLINK
Remote Control
Remote Input
1 Mini TRS
Remote Output
1 Mini TRS


Manuals

Operating Instructions

Service Manual

Technical Data References
