Pioneer CLD-1070
Jump to navigation
Jump to search
| Release Info | |
|---|---|
| Manufacturer | Pioneer |
| Release Date | April 1989 |
| Country | US |
| Color Encoding System | NTSC |
| Features | |
| Playable Disc Formats | LD, LD 20cm, CD, CD 8cm, CDV |
| Playable LaserDisc Modes | CAV, CLV |
| Both-Side Play | None |
| CX Noise Reduction | Yes |
| Video Characteristics | |
| Horizontal Resolution (TVL) | 425 lines |
| Video Signal-to-Noise Ratio | 46dB |
| Laser Type | Infrared Diode |
| Laser Wavelength | 780 |
| Digital Video Processor | None |
| Analog Audio Characteristics | |
| Frequency Response | 20-20,000Hz |
| Signal-to-Noise Ratio | 70dB |
| Digital Audio Characteristics | |
| Frequency Response | 4-20,000Hz |
| Signal-to-Noise Ratio | 100dB |
| Power Characteristics | |
| Input Voltage | 120V |
| Power Frequency | 50, 60Hz |
| Power Consumption | 37W |
| Physical Characteristics | |
| Dimensions (W x H x D) | 420 x 122 x 416mm |
| Weight | 7.5kg |
| Loading Belt Part No. | Pioneer PEB1013 |
| Accessories | |
| Remote Control | Pioneer CU-CLD017 |

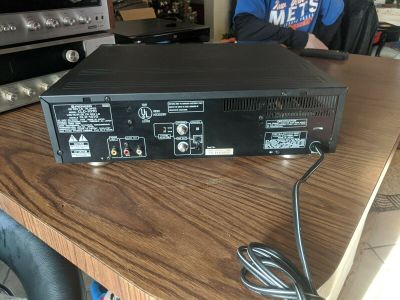

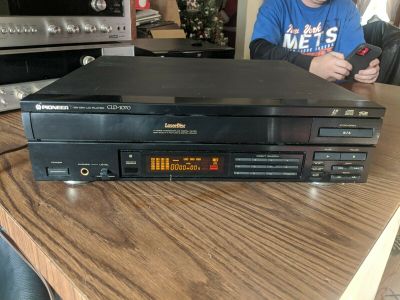

| Photos | |
|---|---|
 | |
 | |
| AV Outputs | |
| Video | Outputs |
Composite  |
1 RCA |
S-Video  |
0 |
VHF  |
1 F-Type |
DC VHF  |
0 |
SCART  |
0 |
| Audio | |
Audio (Mono)  |
0 |
Audio (Stereo)  |
1 RCA (DAC) |
AC-3 RF  |
0 |
Coaxial Digital  |
0 |
Optical Digital  |
0 |
| Remote Control | |
| Remote Input |
1 Mini TRS |
| Remote Output |
1 Mini TRS |
Clone Model Numbers/Rebadges
Pioneer CLD-1450 • Pioneer CLD-100 • Curtis Mathes CDV 901
Manuals
Technical Data References
Other Information
Model Types: CLD-1070/KU/CA (US and Canada), SD/G (US Military)
SD/G Type has voltage selector for 110V/120-127V/220V/240V, 50/60Hz, 40W
