Pioneer CLD-3030

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Pioneer
Release Date September 1988 [1]
Country US
Color Encoding System NTSC
Features
Playable Disc Formats LD, LD 20cm, CD, CD 8cm, CDV
Playable LaserDisc Modes CAV, CLV
Both-Side Play None
CX Noise Reduction Yes
Video Characteristics
Horizontal Resolution (TVL) 425 lines
Video Signal-to-Noise Ratio 46dB
Laser Type Infrared Diode
Laser Wavelength 780
Digital Video Processor None
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response 4-20,000Hz
Signal-to-Noise Ratio 107dB
Power Characteristics
Input Voltage 120V
Power Frequency 50, 60Hz
Power Consumption 50W
Physical Characteristics
Dimensions (W x H x D) 420 x 440 x 110mm
Weight 10.2
Loading Belt Part No. Pioneer VEB-125
Accessories
Remote Control Pioneer CU-CLD008
Photos

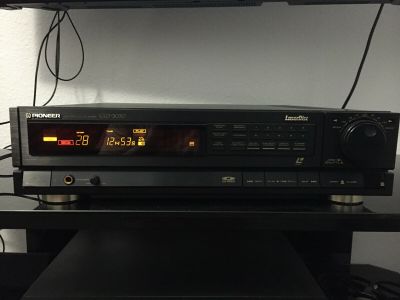

Pioneer CLD-3030 Front Panel (Use Edit tab to upload a new file)

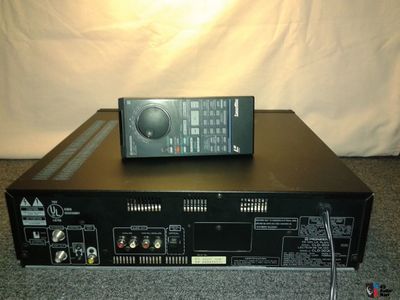

Pioneer CLD-3030 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
1 RCA
S-Video
0
VHF
1 F-Type
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
2 RCA (1 DAC)
AC-3 RF
0
Coaxial Digital
0
Optical Digital
1 TOSLINK
Remote Control
Remote Input
1 Mini TRS
Remote Output
1 Mini TRS

Clone Model Numbers/Rebadges

Pioneer LD-850D • Pioneer CLD-1030 • Pioneer CLD-V180 • Pioneer CLD-V190 • Pioneer CLD-V200 • Pioneer CLD-99S • Pioneer LD-7700S • Pioneer CLD-1200 • Pioneer LD-W1 • Pioneer LD-K5 • Pioneer LD-V2200 • Marantz CDV-770 • Marantz CDV-570

Manuals

Operating Instructions

Service Manual

Technical Data References

Other Information

4x Oversampling Digital Filter. Uses the same pickup as the Pioneer LD-W1.[1]
