Pioneer CLD-A100

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Pioneer
Release Date 1993/08/20 [1]
Country US
Color Encoding System
Features
Playable Disc Formats LD, LD 20cm, LD-G, CD, CD 8cm, CDV, LD-ROM
Playable LaserDisc Modes CAV, CLV
Both-Side Play None
CX Noise Reduction Yes
Video Characteristics
Horizontal Resolution (TVL)
Video Signal-to-Noise Ratio
Laser Type Infrared Diode
Laser Wavelength 780
Digital Video Processor None
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Power Characteristics
Input Voltage 120V
Power Frequency 60Hz
Power Consumption 47W
Physical Characteristics
Dimensions (W x H x D) 420 x 145 x 390.5mm
Weight 7.8kg
Loading Belt Part No.
Accessories
Remote Control
Photos

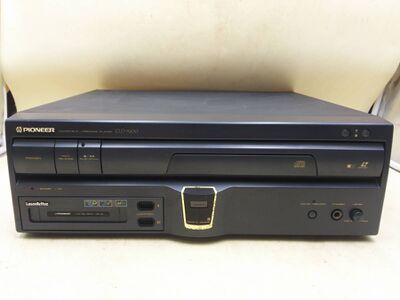

Pioneer CLD-A100 Front Panel (Use Edit tab to upload a new file)

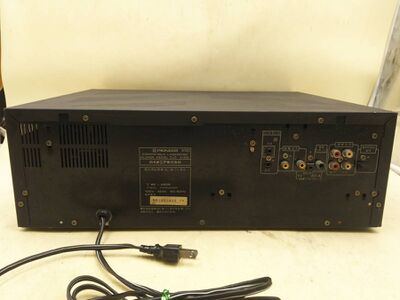

Pioneer CLD-A100 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
2 RCA
S-Video
0
VHF
0
DC VHF
1 Mini TRS
SCART
0
Audio
Audio (Mono)
1 RCA
Audio (Stereo)
2 RCA
AC-3 RF
0
Coaxial Digital
0
Optical Digital
1 TOSLINK
Remote Control
Remote Input
1 Mini TRS
Remote Output
1 Mini TRS

Clone Model Numbers/Rebadges

NEC PCE-LD1

Manuals

Operating Instructions

Service Manual

Technical Data References

Other Information

Alternate Model Types

Type Power Requirement Remarks
CLD-A100/KU 120V AC
CLD-A100 (JPN) 100V 50/60Hz 40W

Allows users to enjoy LaserDiscs interactively, the PAC-S1 MEGA-LD pack, the PAC-N1 LD-ROM pack, the PAC-K1 karaoke pack, and the MEGA-LD and LD-ROM dedicated software.

LaserActive Brochure (1993)

US Version released early 1994[1]
