Pioneer CLD-V2600

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Pioneer
Release Date April 1997
Country Produced in Japan, Patent USA
Color Encoding System NTSC
Features
Playable Disc Formats LD, CD, CDV
Playable LaserDisc Modes CAV, CLV
Both-Side Play None
CX Noise Reduction Yes
Video Characteristics
Horizontal Resolution (TVL) 425 lines
Video Signal-to-Noise Ratio 50dB
Laser Type Infrared Diode
Laser Wavelength 780
Digital Video Processor None
Analog Audio Characteristics
Frequency Response 20-20,000 ± 2dBHz
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response 4-20,000 ± 0.5dBHz
Signal-to-Noise Ratio 95dB
Power Characteristics
Input Voltage 120V
Power Frequency 50, 60Hz
Power Consumption 43W
Physical Characteristics
Dimensions (W x H x D) 16.5 x 4.8 x 15.6 inches (420 x 122 x 395 mm)
Weight 17 lbs. (7.7 kg)
Loading Belt Part No.
Accessories
Remote Control
Photos

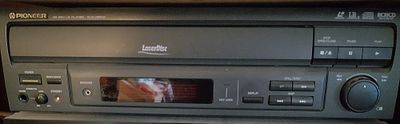

Pioneer CLD-V2600 Front Panel (Use Edit tab to upload a new file)

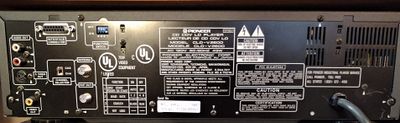

Pioneer CLD-V2600 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
1 RCA
S-Video
1 S-Video
VHF
1 F-Type
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
1 RCA
AC-3 RF
0
Coaxial Digital
0
Optical Digital
0
Remote Control
Remote Input
0
Remote Output
0


Manuals

Operating Instructions

Service Manual

Technical Data References


Other Information

laserdiscarchive.co.uk shows the watts at 95watts max (30 watts typical), but the information on the panel on my player indicates 43watts. The remote that laserdiscarchive.co.uk lists for this player is a RU-V103 (aka CU-V113). I don't believe I have the original remote, but the Pioneer CU-CLD063 works with it. Neither of these models is listed on the drop down list above.
