Pioneer LD-7700S

From Laserwiki
Jump to navigation Jump to search


Release Info
Manufacturer Pioneer
Release Date
Country Japan
Color Encoding System NTSC
Features
Playable Disc Formats LD
Playable LaserDisc Modes
Both-Side Play None
CX Noise Reduction No
Video Characteristics
Horizontal Resolution (TVL)
Video Signal-to-Noise Ratio
Laser Type
Laser Wavelength
Digital Video Processor None
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Power Characteristics
Input Voltage 100V
Power Frequency 50, 60Hz
Power Consumption 40W
Physical Characteristics
Dimensions (W x H x D) 420 x 110 x 420mm
Weight 12.5kg
Loading Belt Part No.
Accessories
Remote Control
Photos

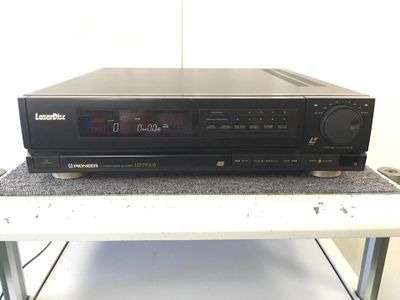

Pioneer LD-7700S Front Panel (Use Edit tab to upload a new file)

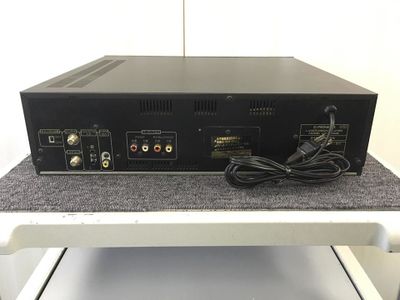

Pioneer LD-7700S Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video Outputs
Composite
1 RCA
S-Video
0
VHF
1 F-Type
DC VHF
0
SCART
0
Audio
Audio (Mono)
0
Audio (Stereo)
2 RCA (1 DAC)
AC-3 RF
0
Coaxial Digital
0
Optical Digital
0
Remote Control
Remote Input
1 Mini TRS
Remote Output
1 Mini TRS

Clone Model Numbers/Rebadges

Pioneer LD-850D • Pioneer CLD-1030 • Pioneer CLD-V180 • Pioneer CLD-V190 • Pioneer CLD-V200 • Pioneer CLD-99S • Pioneer CLD-3030 • Pioneer CLD-1200 • Pioneer LD-W1 • Pioneer LD-K5 • Pioneer LD-V2200 • Marantz CDV-770 • Marantz CDV-570

Manuals

Operating Instructions

Service Manual

Technical Data References


Other Information

Eight-bit digital memory.[1]
