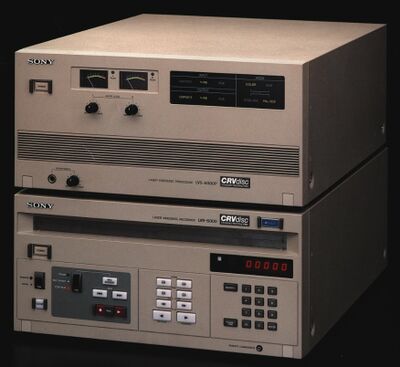

Sony LVR-6000/LVS-6000P
Jump to navigation
Jump to search
| Release Info | |
|---|---|
| Manufacturer | Sony |
| Release Date | |
| Country | Europe |
| Color Encoding System | NTSC, PAL |
| Features | |
| Playable Disc Formats | LD |
| Playable LaserDisc Modes | CAV |
| Both-Side Play | None |
| CX Noise Reduction | No |
| Video Characteristics | |
| Horizontal Resolution (TVL) | |
| Video Signal-to-Noise Ratio | 48dB |
| Laser Type | Infrared Diode |
| Laser Wavelength | 780 |
| Digital Video Processor | None |
| Analog Audio Characteristics | |
| Frequency Response | 20-15,000Hz |
| Signal-to-Noise Ratio | 88dB |
| Digital Audio Characteristics | |
| Frequency Response | |
| Signal-to-Noise Ratio | |
| Power Characteristics | |
| Input Voltage | 220, 230, 240V |
| Power Frequency | 50Hz |
| Power Consumption | 145W |
| Physical Characteristics | |
| Dimensions (W x H x D) | 375 x 360 x 530 |
| Weight | 30.5 |
| Loading Belt Part No. | |
| Accessories | |
| Remote Control | Sony RM-W5000 |
| Photos | |
|---|---|
 | |
 | |

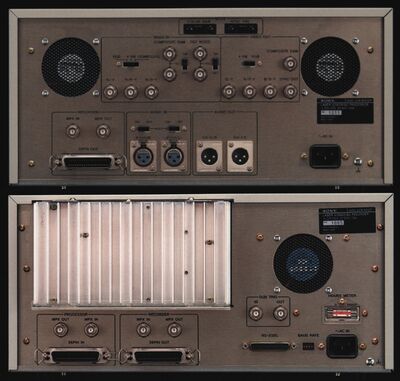

| AV Outputs | |
| Video | Outputs |
Composite  |
1 BNC (B&W), 1 BNC (RGB) |
S-Video  |
0 |
VHF  |
0 |
DC VHF  |
0 |
SCART  |
0 |
| Audio | |
Audio (Mono)  |
0 |
Audio (Stereo)  |
1 XLR |
AC-3 RF  |
0 |
Coaxial Digital  |
0 |
Optical Digital  |
0 |
| Remote Control | |
| Remote Input |
0 |
| Remote Output |
0 |
Manuals
Technical Data References
Other Information
CRV disc recording/playback only, requires Sony LVS-6000P processor.
LVR-6000/LVS-6000P Sales Brochure
Optional DB-W6000N NTSC Board can be installed for NTSC playback.
