McIntosh MLD7020

Release Info
Manufacturer	McIntosh
Release Date	December 1996
Country	US
Color Encoding System	NTSC
Features
Playable Disc Formats	LD, LD 20cm, CD, CDV
Playable LaserDisc Modes	CAV, CLV
Both-Side Play	Yes
CX Noise Reduction	No
Video Characteristics
Horizontal Resolution (TVL)	425 lines
Video Signal-to-Noise Ratio
Laser Type
Laser Wavelength
Digital Video Processor	None
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response	4-20,000Hz
Signal-to-Noise Ratio	110dB
Power Characteristics
Input Voltage	120V
Power Frequency	50, 60Hz
Power Consumption	60W
Physical Characteristics
Dimensions (W x H x D)	445 x 194 x 508mm
Weight	10kg
Loading Belt Part No.
Accessories
Remote Control

Photos

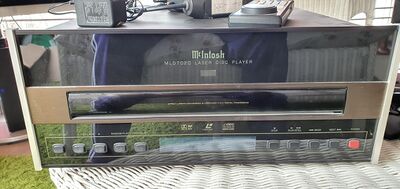

McIntosh MLD7020 Front Panel (Use Edit tab to upload a new file)

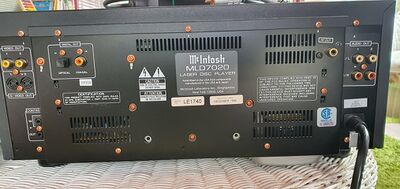

McIntosh MLD7020 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video	Outputs
Composite	2 RCA
S-Video	2 S-Video
VHF	0
DC VHF	0
SCART	0
Audio
Audio (Mono)	0
Audio (Stereo)	2 RCA
AC-3 RF	1 RCA
Coaxial Digital	1 RCA
Optical Digital	1 TOSLINK
Remote Control
Remote Input	1 Mini TRS
Remote Output	1 Mini TRS
