Onkyo DX-V500
Jump to navigation
Jump to search
| Release Info | |
|---|---|
| Manufacturer | Onkyo |
| Release Date | |
| Country | |
| Color Encoding System | NTSC |
| Features | |
| Playable Disc Formats | LD, LD 20cm, CD, CD 8cm, CDV |
| Playable LaserDisc Modes | CAV, CLV |
| Both-Side Play | Yes |
| CX Noise Reduction | No |
| Video Characteristics | |
| Horizontal Resolution (TVL) | |
| Video Signal-to-Noise Ratio | |
| Laser Type | Infrared Diode |
| Laser Wavelength | 780 |
| Digital Video Processor | None |
| Analog Audio Characteristics | |
| Frequency Response | |
| Signal-to-Noise Ratio | |
| Digital Audio Characteristics | |
| Frequency Response | 4-20,000Hz |
| Signal-to-Noise Ratio | 115dB |
| Power Characteristics | |
| Input Voltage | 120, 220V |
| Power Frequency | 50, 60Hz |
| Power Consumption | 37W |
| Physical Characteristics | |
| Dimensions (W x H x D) | 455 x 138 x 407mm |
| Weight | 7.7kg |
| Loading Belt Part No. | Pioneer VEB1184 |
| Accessories | |
| Remote Control | |

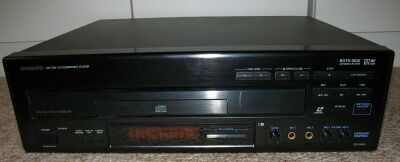

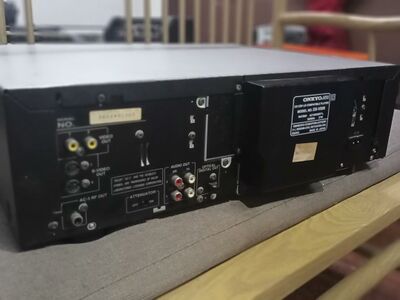

| Photos | |
|---|---|
 | |
 | |
| AV Outputs | |
| Video | Outputs |
Composite  |
2 RCA |
S-Video  |
2 S-Video |
VHF  |
0 |
DC VHF  |
0 |
SCART  |
0 |
| Audio | |
Audio (Mono)  |
0 |
Audio (Stereo)  |
2 RCA |
AC-3 RF  |
1 RCA |
Coaxial Digital  |
0 |
Optical Digital  |
1 TOSLINK |
| Remote Control | |
| Remote Input |
0 |
| Remote Output |
0 |
