Pioneer CLD-2070

Release Info
Manufacturer	Pioneer
Release Date	June 1989
Country	US
Color Encoding System	NTSC
Features
Playable Disc Formats	LD, LD 20cm, CD, CD 8cm, CDV
Playable LaserDisc Modes	CAV, CLV
Both-Side Play	Yes
CX Noise Reduction	No
Video Characteristics
Horizontal Resolution (TVL)	425 lines
Video Signal-to-Noise Ratio	47dB
Laser Type
Laser Wavelength
Digital Video Processor	None
Analog Audio Characteristics
Frequency Response	20-20,000Hz
Signal-to-Noise Ratio	70dB
Digital Audio Characteristics
Frequency Response	4-20,000Hz
Signal-to-Noise Ratio	95dB
Power Characteristics
Input Voltage	120V
Power Frequency	50, 60Hz
Power Consumption	45W
Physical Characteristics
Dimensions (W x H x D)	420 x 130 x 473mm
Weight	10.8kg
Loading Belt Part No.
Accessories
Remote Control	Pioneer CU-CLD016

Photos

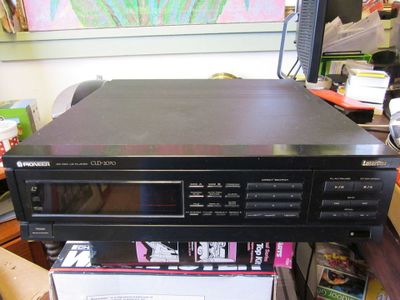

Pioneer CLD-2070 Front Panel (Use Edit tab to upload a new file)

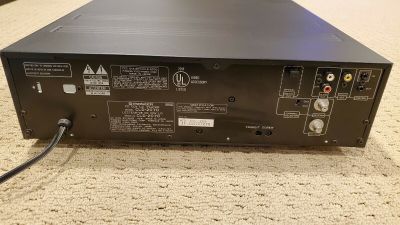

Pioneer CLD-2070 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video	Outputs
Composite	1 RCA
S-Video	0
VHF	1 F-Type
DC VHF	0
SCART	0
Audio
Audio (Mono)	0
Audio (Stereo)	1 RCA
AC-3 RF	0
Coaxial Digital	0
Optical Digital	1 TOSLINK
Remote Control
Remote Input	1 Mini TRS
Remote Output	1 Mini TRS
