Pioneer CLD-D406

Release Info
Manufacturer	Pioneer
Release Date	September 1996
Country	US
Color Encoding System	NTSC
Features
Playable Disc Formats	LD, LD 20cm, CD, CD 8cm, CDV
Playable LaserDisc Modes	CAV, CLV
Both-Side Play	Gamma Turn
CX Noise Reduction	Yes
Video Characteristics
Horizontal Resolution (TVL)	425 lines
Video Signal-to-Noise Ratio	49dB
Laser Type	Infrared Diode
Laser Wavelength	780
Digital Video Processor	Pioneer PD0234A
Analog Audio Characteristics
Frequency Response
Signal-to-Noise Ratio
Digital Audio Characteristics
Frequency Response	4-20,000Hz
Signal-to-Noise Ratio	102dB
Power Characteristics
Input Voltage	120V
Power Frequency	60Hz
Power Consumption	29W
Physical Characteristics
Dimensions (W x H x D)	430 x 132 x 405mm
Weight	6.4kg
Loading Belt Part No.	Pioneer VEB1184
Accessories
Remote Control	Pioneer CU-CLD134

Photos

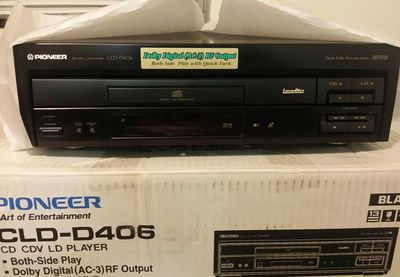

Pioneer CLD-D406 Front Panel (Use Edit tab to upload a new file)

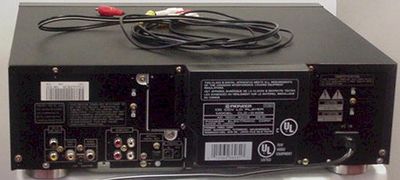

Pioneer CLD-D406 Rear Panel (Use Edit tab to upload a new file)
AV Outputs
Video	Outputs
Composite	2 RCA
S-Video	0
VHF	0
DC VHF	1 Mini TRS
SCART	0
Audio
Audio (Mono)	1 RCA
Audio (Stereo)	2 RCA
AC-3 RF	1 RCA
Coaxial Digital	0
Optical Digital	1 TOSLINK
Remote Control
Remote Input	1 Mini TRS
Remote Output	1 Mini TRS
